配置教程:serv00搭建vmess

1384字约5分钟

VPN

2024-05-15

感谢秋水长天:https://bs.openface.cc/2024/06/root-v2ray-serv00-vmess.html

特别注意:本文内容仅供学习交流,严禁用于商业用途

登录ssh

获取账号密码

前往serv00官网注册账号,之后去邮箱获取到serv00发送来的地址和账号密码

登录ssh

我这里使用powershell、也可以使用其他ssh客户端如:xshell、finalshell、windterm等

ssh 用户名@服务器地址
# 举例
ssh name@s2.serv00.com

ssh

开通端口、运行软件服务

登录面板https://panel2.serv00.com

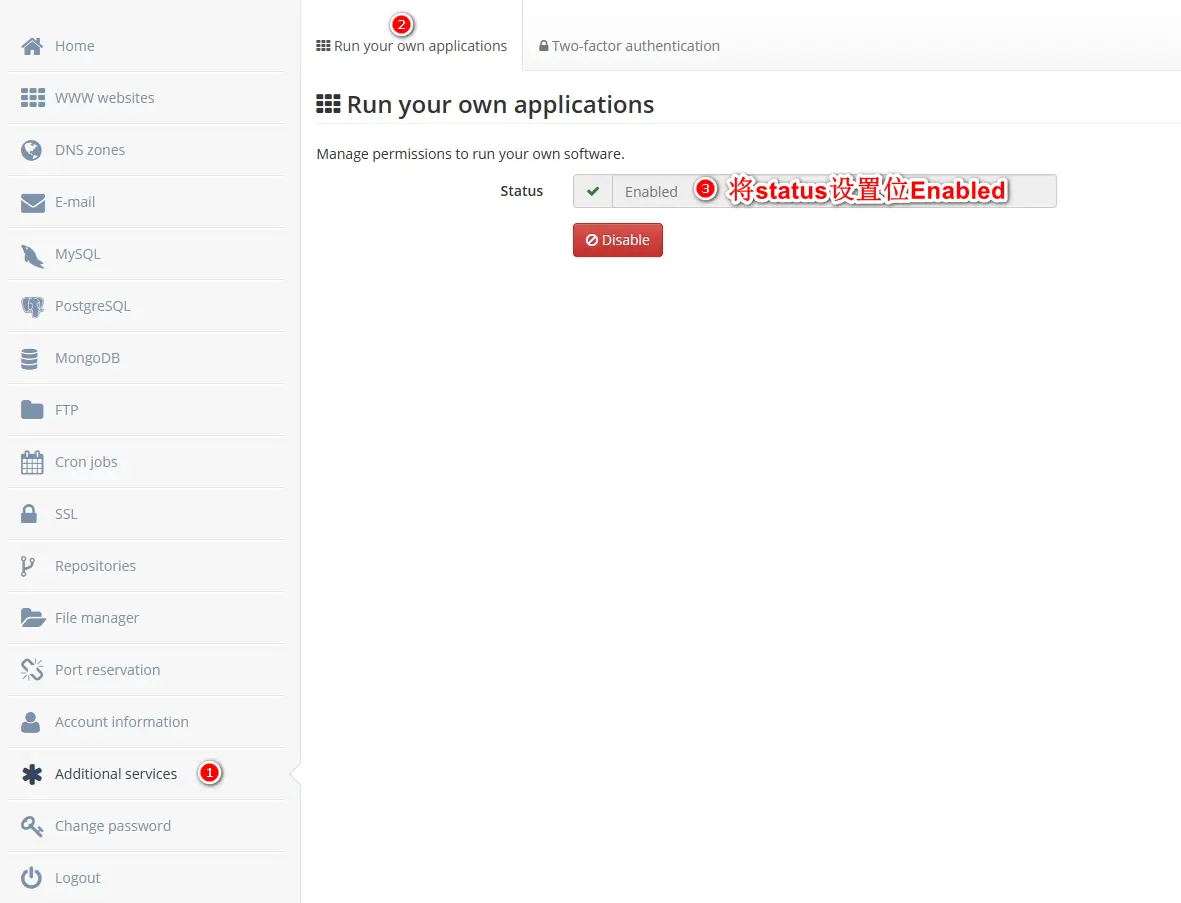

开启运行软件服务

打开额外服务

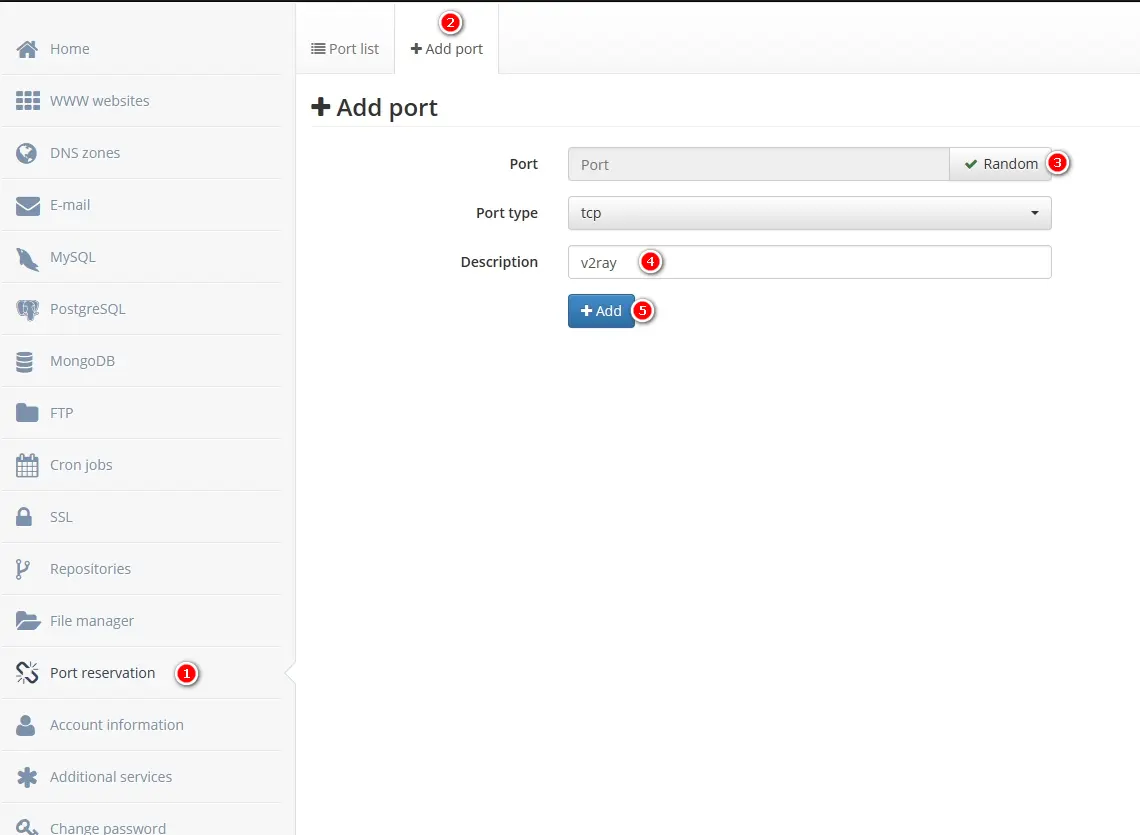

创建端口

==注意:==随机端口号(避免重复端口导致失败)

创建端口

记住端口号

记住端口号

安装linux版本v2ray

查看系统版本

我这里返回的amd64版本

uname -a	# 查看服务器系统

image-20240903134017195

下载、解压v2ray

由于无root权限,故无法使用官方一键安装脚本,只能手动

官网https://github.com/v2fly/v2ray-core/releases找到系统版本对应的v2ray的zip链接并下载

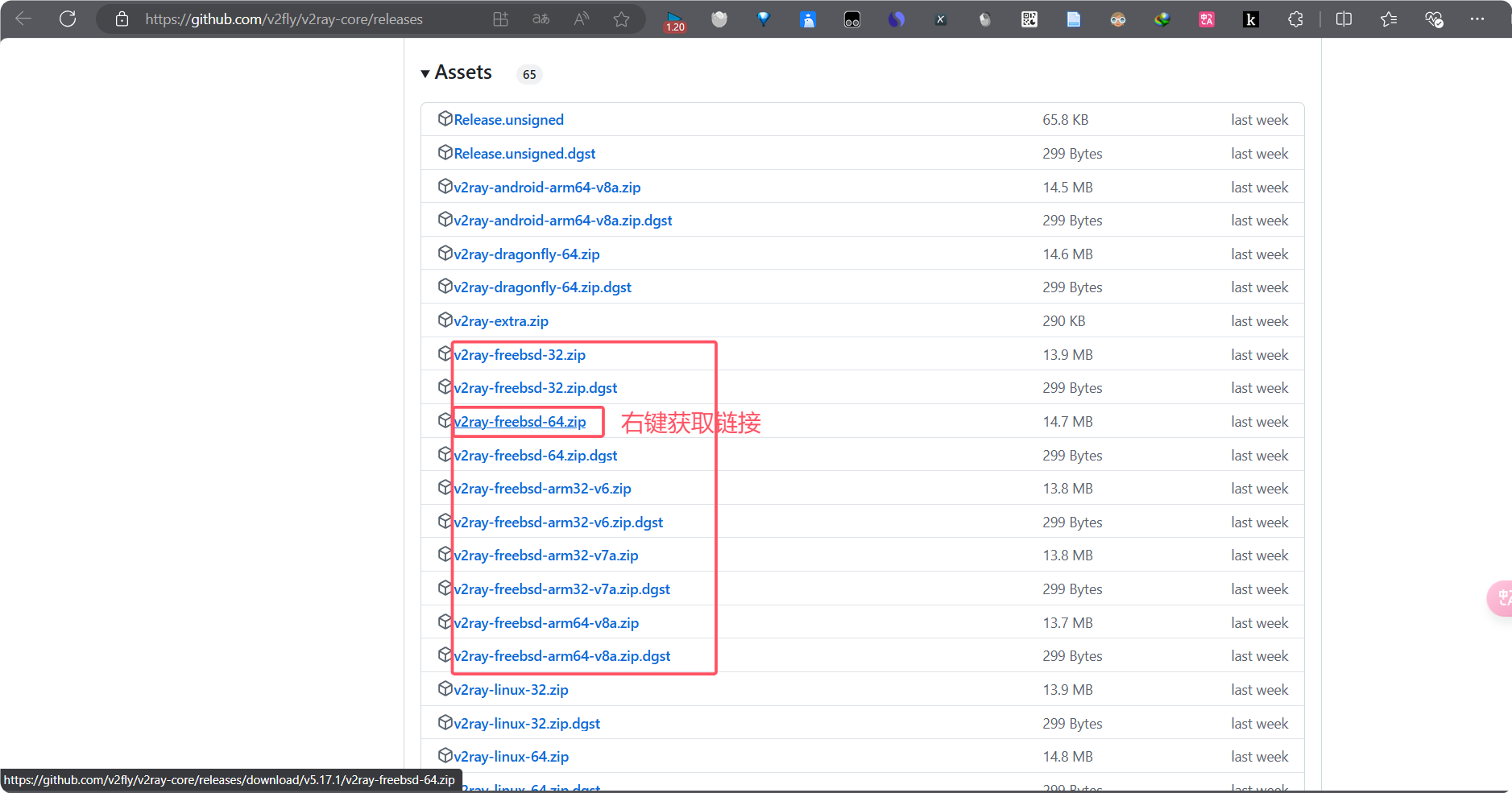

image-20240903134458694

cd ./domains/	# 我这边是有个domains的目录,根据你们服务器情况自行操作
mkdir v2ray	# 建议新建一个v2ray的文件夹
cd v2ray	# 进入到这个文件夹中
wget https://github.com/v2fly/v2ray-core/releases/download/v5.14.1/v2ray-freebsd-64.zip	# 选择对应系统的版本下载v2ray
unzip v2ray-freebsd-64.zip	# 解压zip包

安装和配置v2ray

验证安装和生成uuid

./v2ray version	# 验证版本是否能够启动【若无法启动则赋予755/777权限:chmod 755 v2ray】
# 返回:V2Ray 5.14.1 (V2Fly, a community-driven edition of V2Ray.) Custom (go1.22.0 freebsd/amd64) A unified platform for anti-censorship.
./v2ray uuid	# 生成uuid(一个uuid供多台设备随便使用)
curl ifconfig.me	# 获取服务器外网ip

配置config

  1. inbound -> port(更改为serv00创建的端口)
  2. inbound -> listen(将本地回环地址127.0.0.1更改为服务外网ip)
  3. inbound -> protocol(修改为vmess协议)
  4. inbound -> settings -> clients -> id(更改为v2ray生成的uuid)
  5. inbound -> 加入字段streamSettings

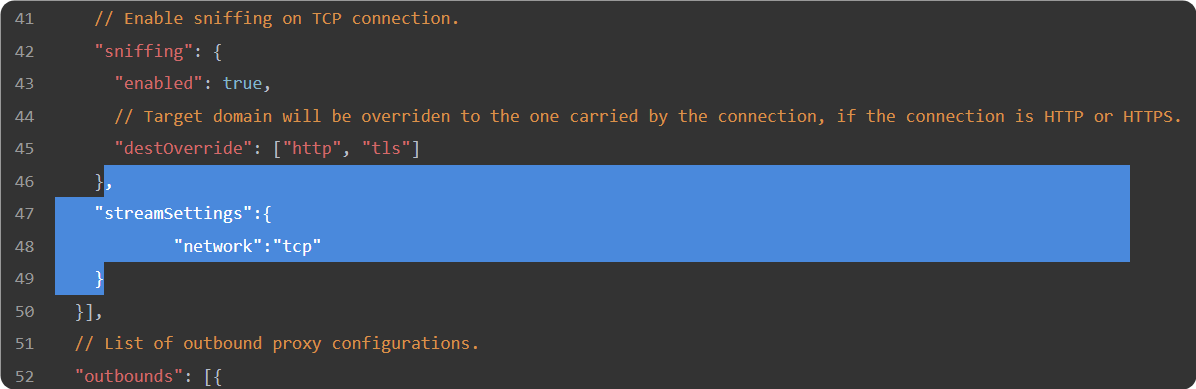

image-20240903135747770

// Config file of V2Ray. This file follows standard JSON format, with comments support.
// Uncomment entries below to satisfy your needs. Also read our manual for more detail at
// https://www.v2fly.org/
{
  "log": {
    // By default, V2Ray writes access log to stdout.
    // "access": "/path/to/access/log/file",

    // By default, V2Ray write error log to stdout.
    // "error": "/path/to/error/log/file",

    // Log level, one of "debug", "info", "warning", "error", "none"
    "loglevel": "warning"
  },
  // List of inbound proxy configurations.
  "inbounds": [{
    // Port to listen on. You may need root access if the value is less than 1024.
    "port": 32832,

    // IP address to listen on. Change to "0.0.0.0" to listen on all network interfaces.
    "listen": "23.144.214.71",

    // Tag of the inbound proxy. May be used for routing.
    "tag": "socks-inbound",

    // Protocol name of inbound proxy.
    "protocol": "vmess",

    // Settings of the protocol. Varies based on protocol.
    "settings": {
      //"auth": "noauth",
      //"udp": false,
      //"ip": "127.0.0.1"
      "clients":[
              {
                "id":"b5a9fb0b-8b87-51a1-83b5-33dee03f9bd6"
              }
      ]
    },

    // Enable sniffing on TCP connection.
    "sniffing": {
      "enabled": true,
      // Target domain will be overriden to the one carried by the connection, if the connection is HTTP or HTTPS.
      "destOverride": ["http", "tls"]
    },
    "streamSettings":{
            "network":"tcp"
    }
  }],
  // List of outbound proxy configurations.
  "outbounds": [{
    // Protocol name of the outbound proxy.
    "protocol": "freedom",

    // Settings of the protocol. Varies based on protocol.
    "settings": {},

    // Tag of the outbound. May be used for routing.
    "tag": "direct"
  },{
    "protocol": "blackhole",
    "settings": {},
    "tag": "blocked"
  }],

  // Transport is for global transport settings. If you have multiple transports with same settings
  // (say mKCP), you may put it here, instead of in each individual inbound/outbounds.
  //"transport": {},

  // Routing controls how traffic from inbounds are sent to outbounds.
  "routing": {
    "domainStrategy": "IPOnDemand",
    "rules":[
      {
        // Blocks access to private IPs. Remove this if you want to access your router.
        "type": "field",
        "ip": ["geoip:private"],
        "outboundTag": "blocked"
      },
      {
        // Blocks major ads.
        "type": "field",
        "domain": ["geosite:category-ads"],
        "outboundTag": "blocked"
      }
    ]
  },

  // Dns settings for domain resolution.
  "dns": {
    // Static hosts, similar to hosts file.
    "hosts": {
      // Match v2fly.org to another domain on CloudFlare. This domain will be used when querying IPs for v2fly.org.
      "domain:v2fly.org": "www.vicemc.net",

      // The following settings help to eliminate DNS poisoning in mainland China.
      // It is safe to comment these out if this is not the case for you.
      "domain:github.io": "pages.github.com",
      "domain:wikipedia.org": "www.wikimedia.org",
      "domain:shadowsocks.org": "electronicsrealm.com"
    },
    "servers": [
      "1.1.1.1",
      {
        "address": "114.114.114.114",
        "port": 53,
        // List of domains that use this DNS first.
        "domains": [
          "geosite:cn"
        ]
      },
      "8.8.8.8",
      "localhost"
    ]
  },

  // Policy controls some internal behavior of how V2Ray handles connections.
  // It may be on connection level by user levels in 'levels', or global settings in 'system.'
  "policy": {
    // Connection policys by user levels
    "levels": {
      "0": {
        "uplinkOnly": 0,
        "downlinkOnly": 0
      }
    },
    "system": {
      "statsInboundUplink": false,
      "statsInboundDownlink": false,
      "statsOutboundUplink": false,
      "statsOutboundDownlink": false
    }
  },

  // Stats enables internal stats counter.
  // This setting can be used together with Policy and Api.
  //"stats":{},

  // Api enables gRPC APIs for external programs to communicate with V2Ray instance.
  //"api": {
    //"tag": "api",
    //"services": [
    //  "HandlerService",
    //  "LoggerService",
    //  "StatsService"
    //]
  //},

  // You may add other entries to the configuration, but they will not be recognized by V2Ray.
  "other": {}
}

启动并保持后台运行

nohup ./v2ray run &	# 启动并保持后台运行(输出日志放在nohup.out中,关闭ssh连接软件依旧运行)

预防服务器重启软件暴毙

nohup ~/domains/v2ray/v2ray run &	# 添加定时任务

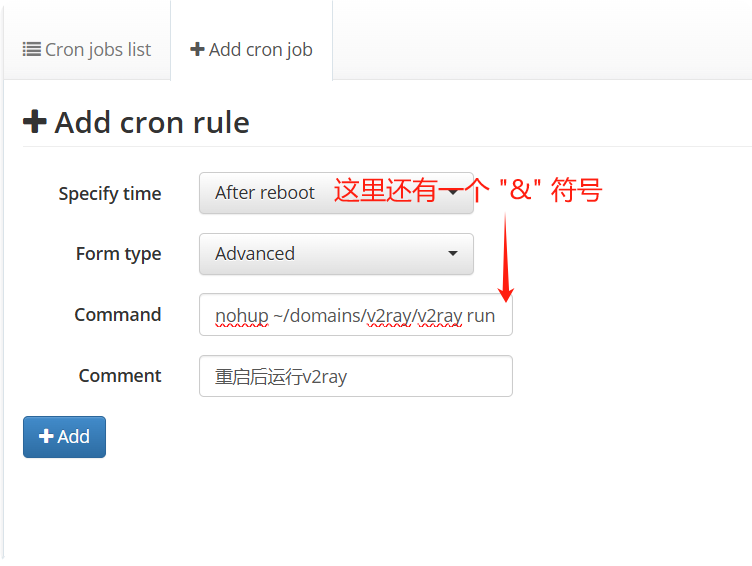

image-20240903141038062

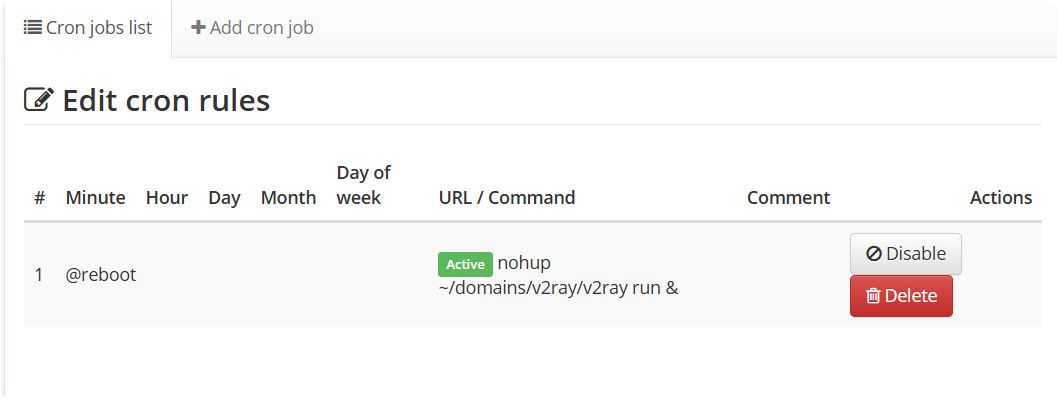

image-20240903140810974

代理软件配置

v2ray

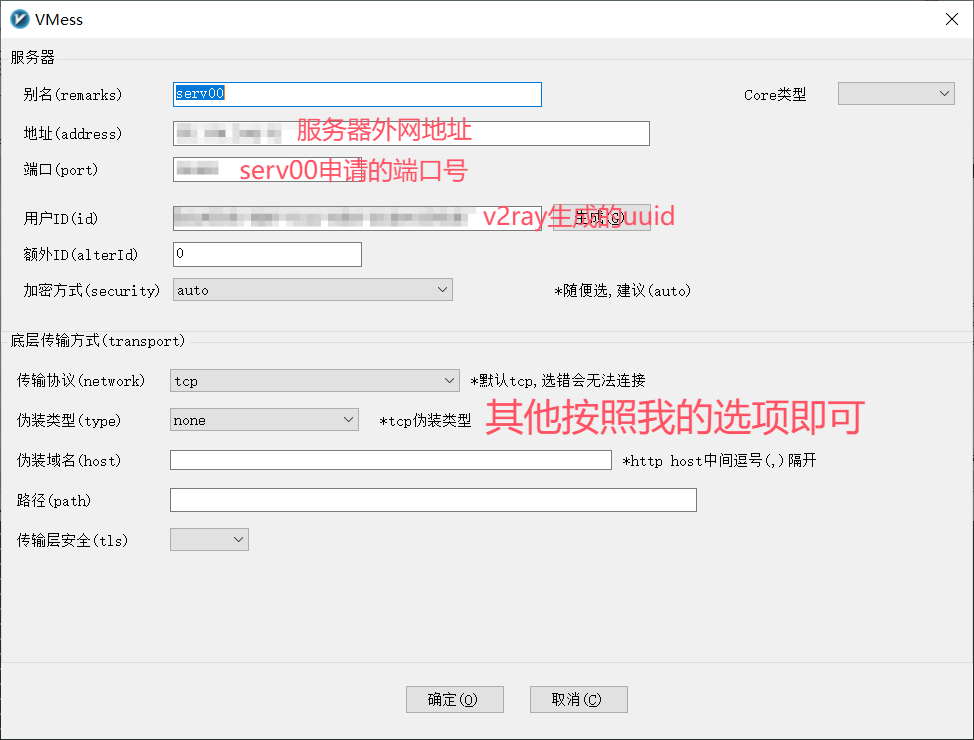

image-20240903141345293

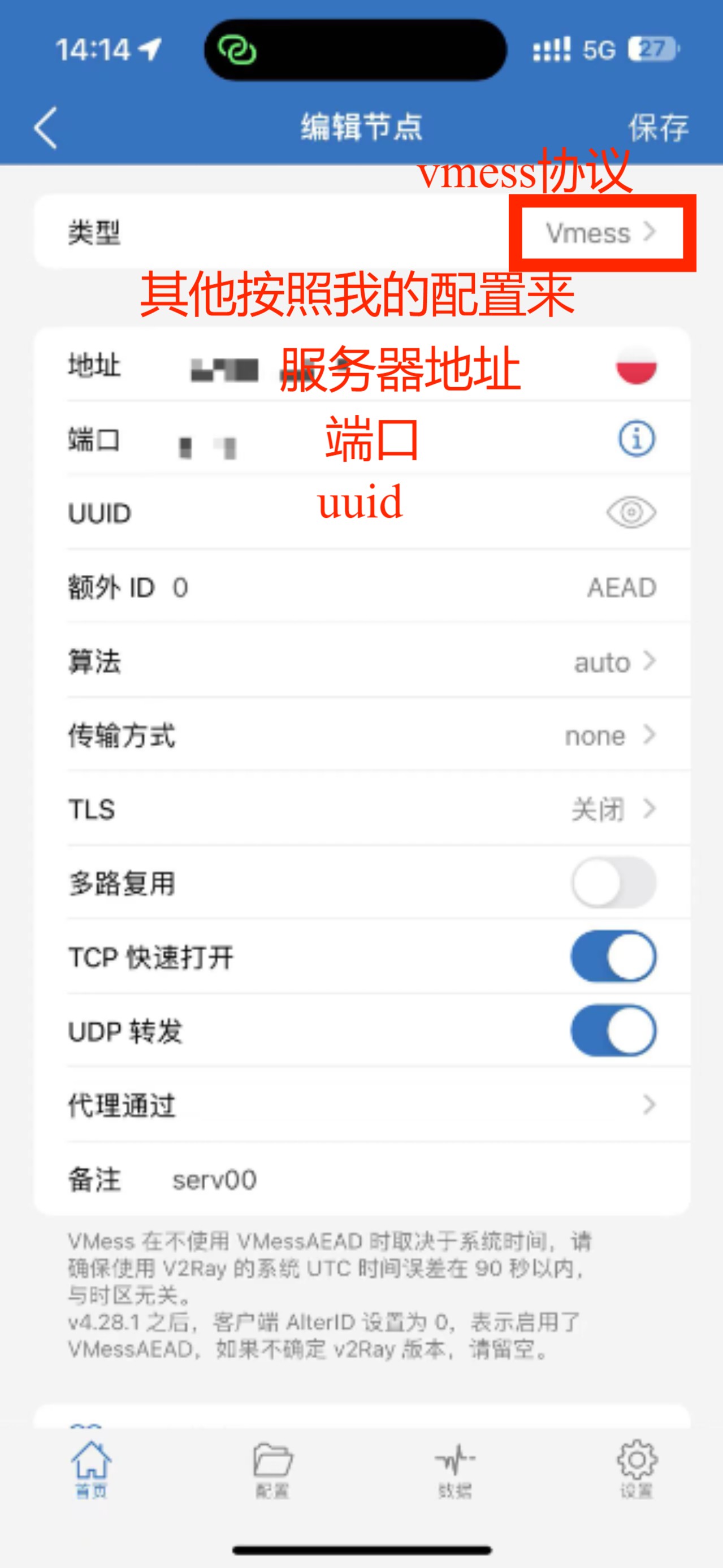

shadowrocket

e1046d7dc8a435e9398d17949a2940c5
